Honda Motorcycles has released details on the 2021 Honda CRF motocross and off-road range headlined by an all-new CRF450R.
Every part of the 2021 Honda CRF450R is new, save for wheels and engine. The new frame and swingarm, plus changes to geometry and suspension, save weight and are claimed to improve cornering performance. The engine receives intake/exhaust upgrades, new decompression system plus single exhaust muffler to boost and smoothen low-mid-range driveability. A hydraulic clutch offers greater control with a claimed lighter lever pressure. More compact plastics and a smaller seat should make the bike feel more nimble.
2021 Honda CRF450R
-

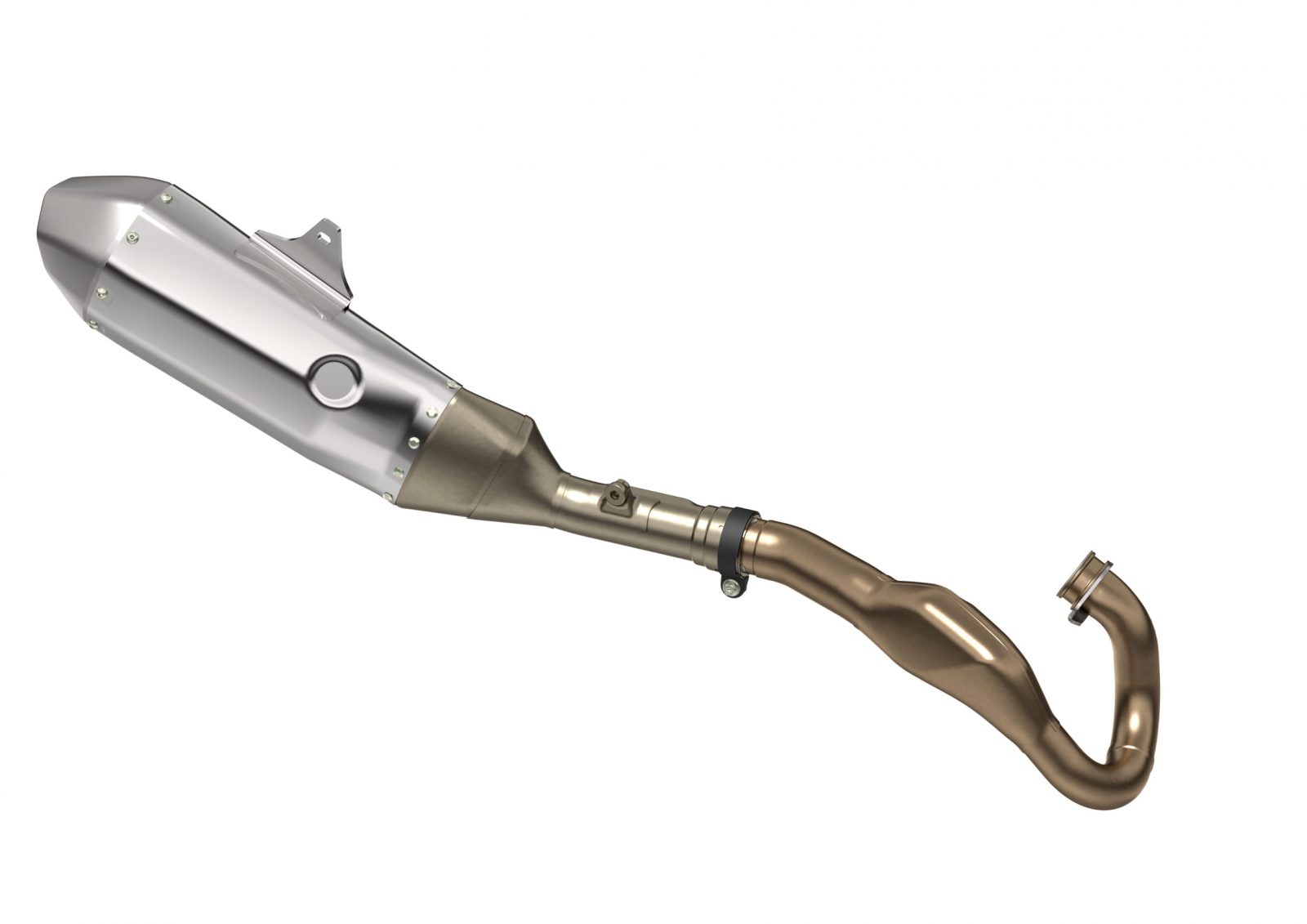

- 2021 Exahust
-

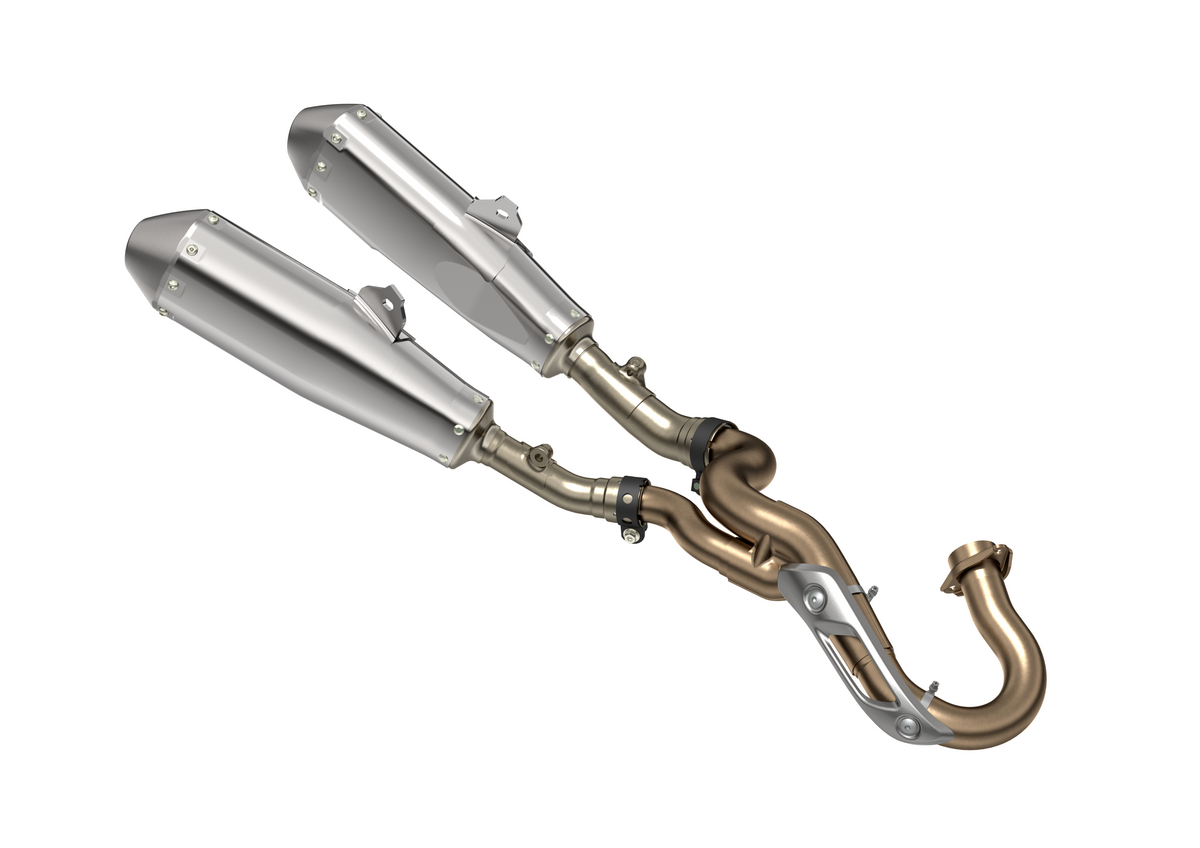

- 2020 Exhaust
The 2021 Honda CRF450R receives a wide array of improvements. Firstly, it’s 2kg lighter, thanks to a revised frame and subframe. The new frame and swingarm’s rigidity balance, combined with tighter chassis geometry, heightened ground clearance and suspension changes, are all targeted at creating a machine that corners better.
The engine also benefits from HRC’s knowhow to give a strong focus on low- to mid-range torque. The decompressor has been relocated, airbox volume is up, the throttle body redesigned and exhaust ports re-shaped. The exhaust downpipe is new and a single muffler replaces dual mufflers.
A larger-volume hydraulic clutch is claimed to have a lighter lever action, while other weight-saving details include a smaller fuel pump and optimised magnesium cylinder head cover. New plastics, too, are lighter and slimmer to aid rider freedom and the seat is a smaller unit, lower at the back. A smart new all-red graphic scheme completes this major update.
2021 CRF450R Chassis
– Narrower main spars and new rear subframe save weight, drawing on HRC knowhow
– Narrower swing arm spars and swingarm pivot point, with revised swingarm rigidity balance
– Geometry changes combine with the above to improve cornering ability
– Re-valved front suspension with an extra 5mm stroke matched with re-valved rear shock
– Improved ergonomics from smaller new seat, and more compact, redesigned plastics
The CRF450R’s twin-spar aluminium frame was unchanged in 20YM; for MY21 it is completely renewed – with direct input from the HRC race team – to elevate every aspect of cornering ability.

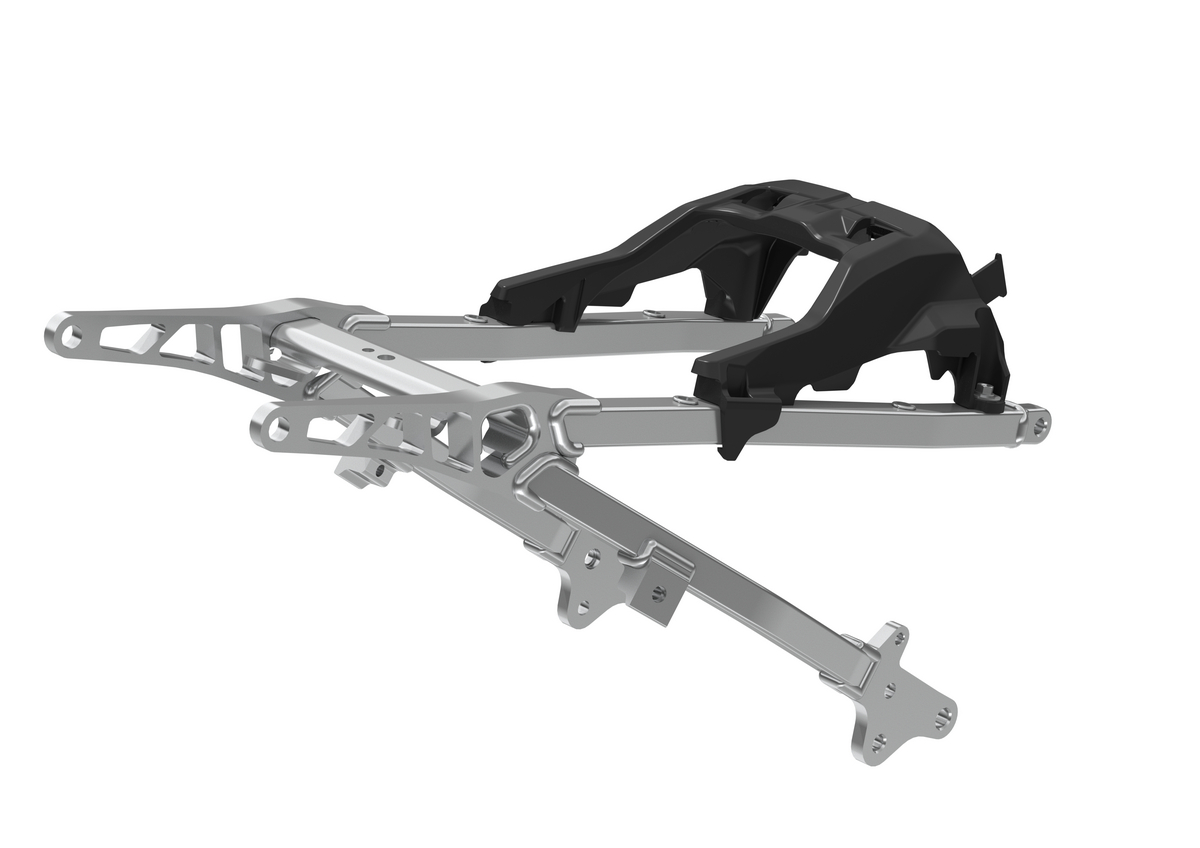

Thanks to narrower main spars, at 8.4kg it weighs 700g less than the previous design, while a redesigned subframe also saves 320g at 910g. The chassis dynamic is also new: while torsional rigidity is maintained, lateral rigidity has been reduced by 20% to increase corner speed, traction and steering accuracy. The aluminium swingarm has a new rigidity balance tuned to match the frame, with narrower arms and pivot point. The Pro-Link ratio is also revised.
-

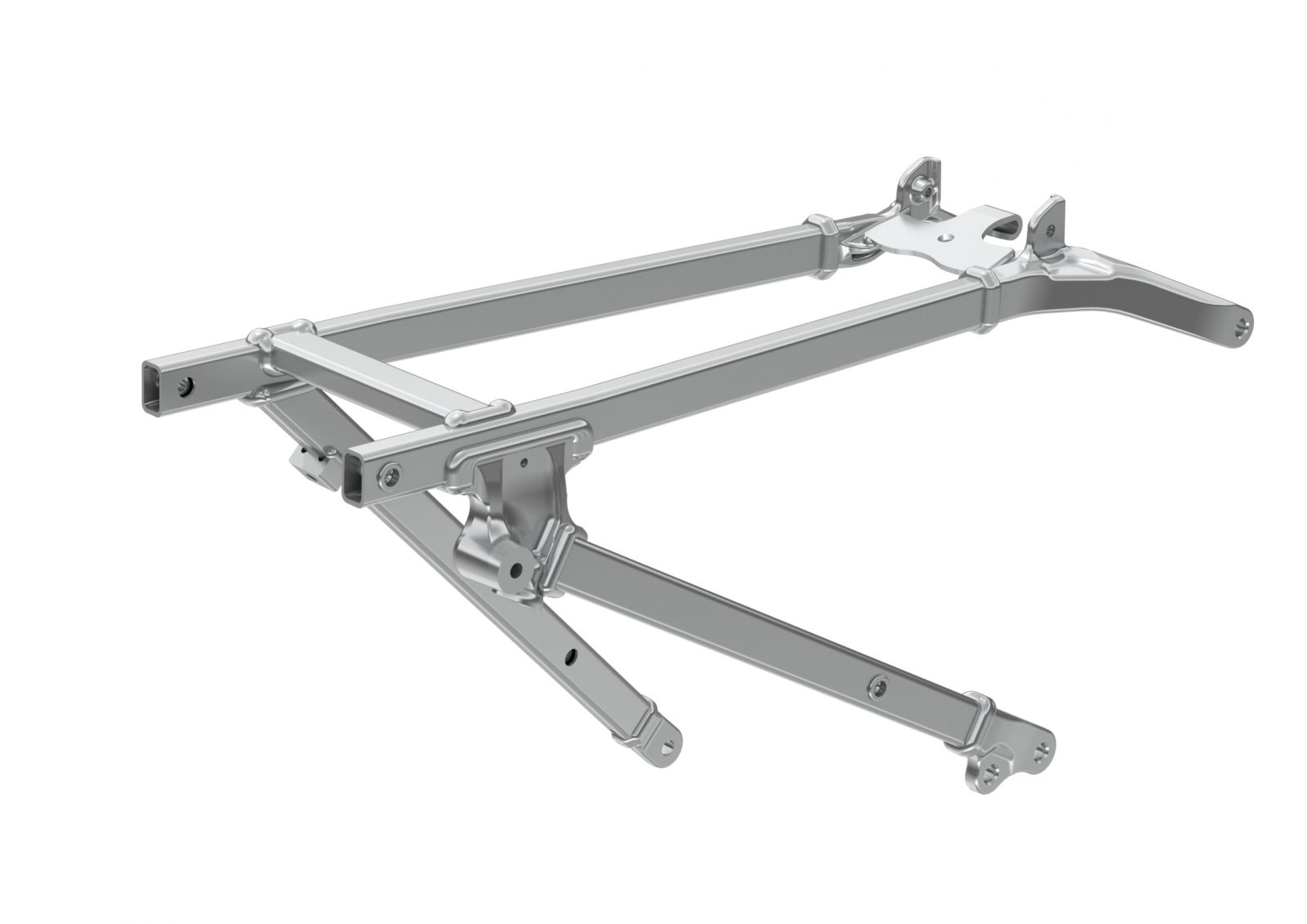

- 2020 Subframe
-
- 2021 Subframe
-

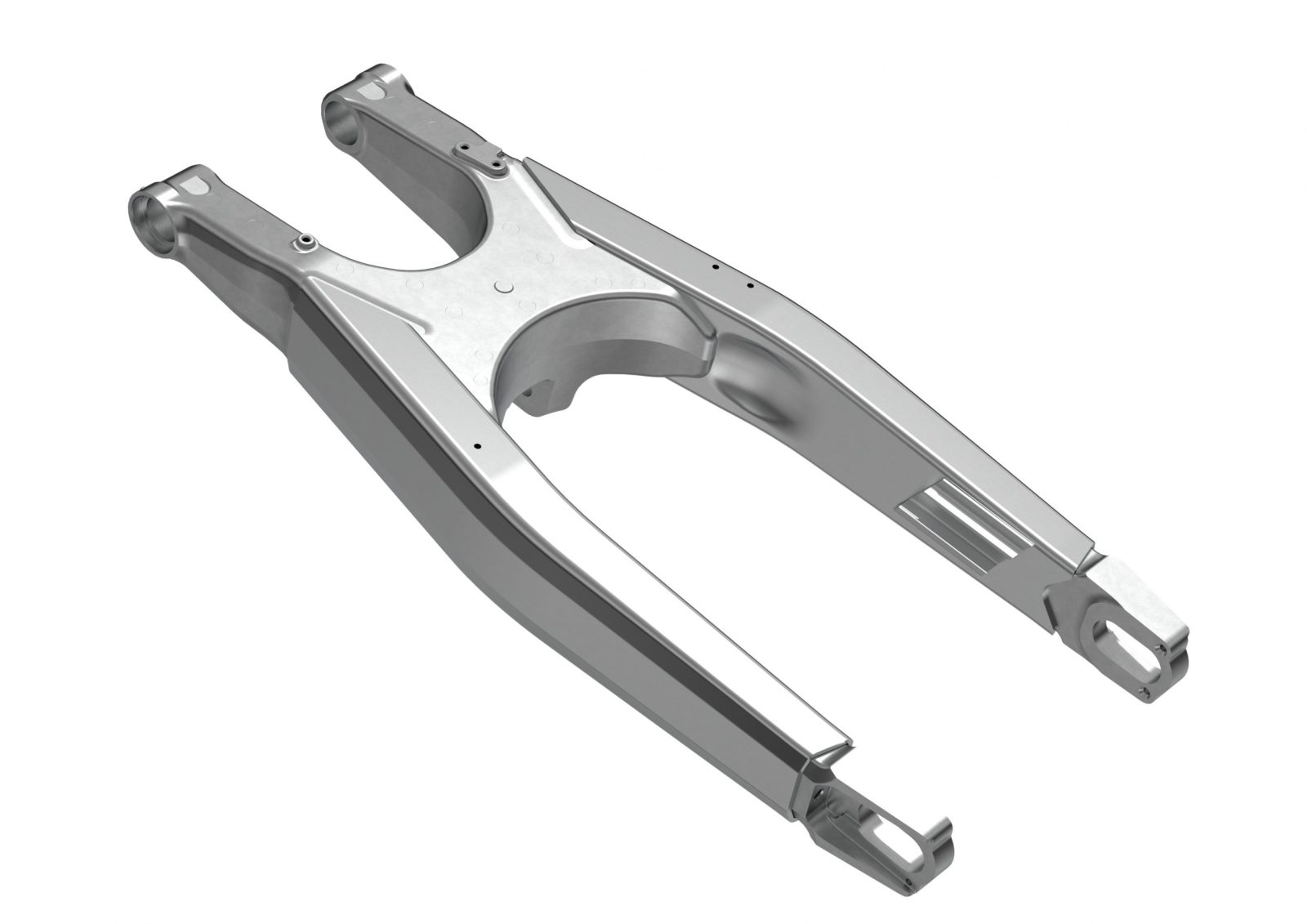

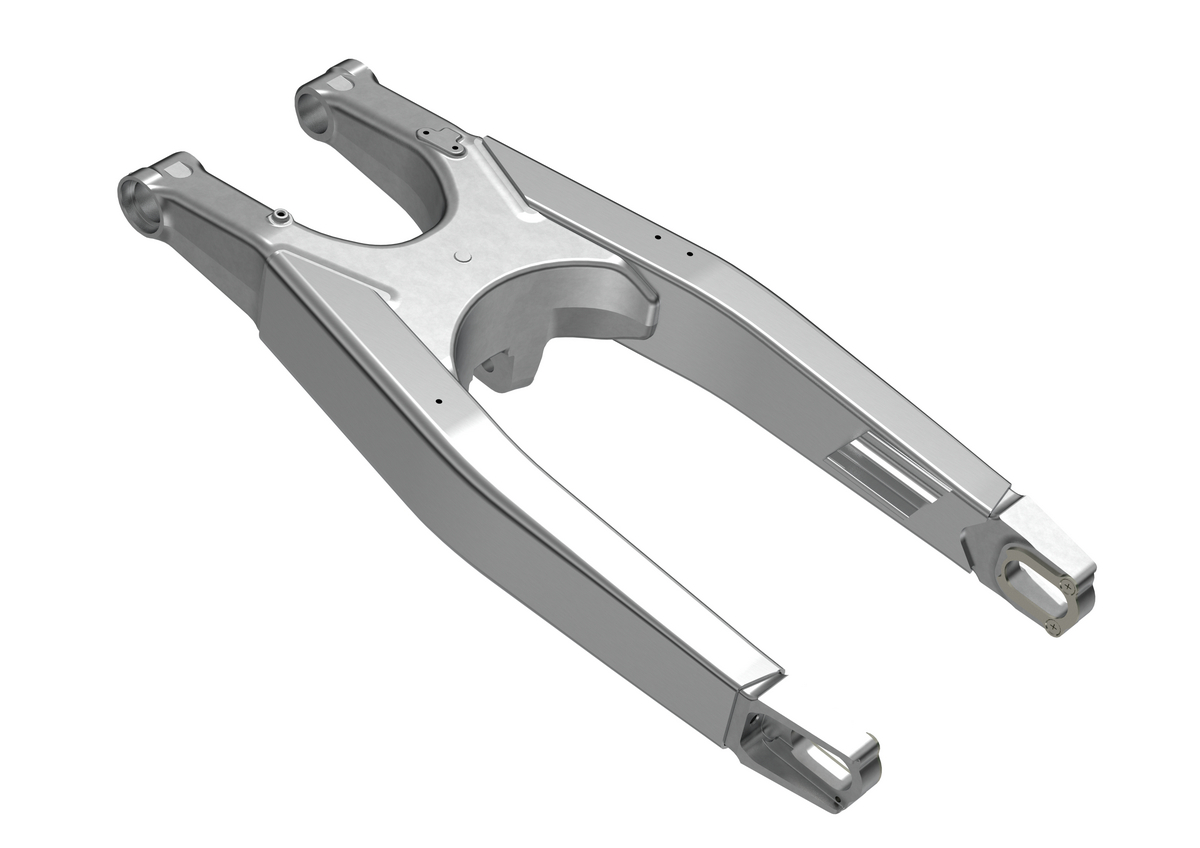

- 2020 Swingarm
-
- 2021 Swingarm

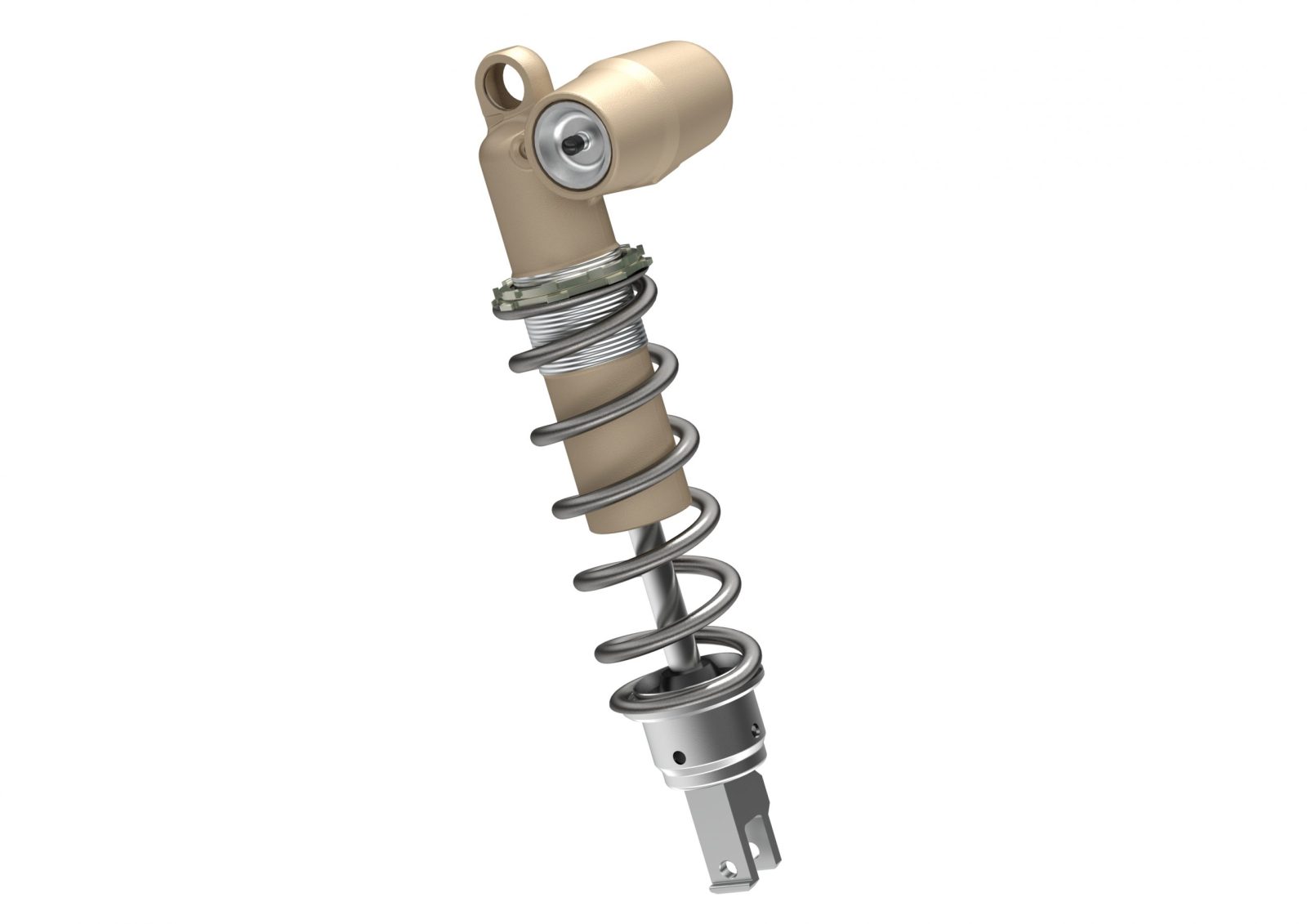

Both top and bottom yokes are revised, with more flex, for quicker steering and feel. Fully adjustable, the 49mm Showa USD coil spring fork is a version of the Showa ‘factory’ fork supplied to MX race teams in the Japanese championship. With the target of improved, smoother cornering performance, the forks have been revalved, the stroke lengthened by 5mm to 310mm and the axle clamps’ rigidity increased. The Showa rear shock’s main piston valving is enlarged for faster response and improved bump absorption. Its spring also uses the world’s lightest steel – to save 200g.
-

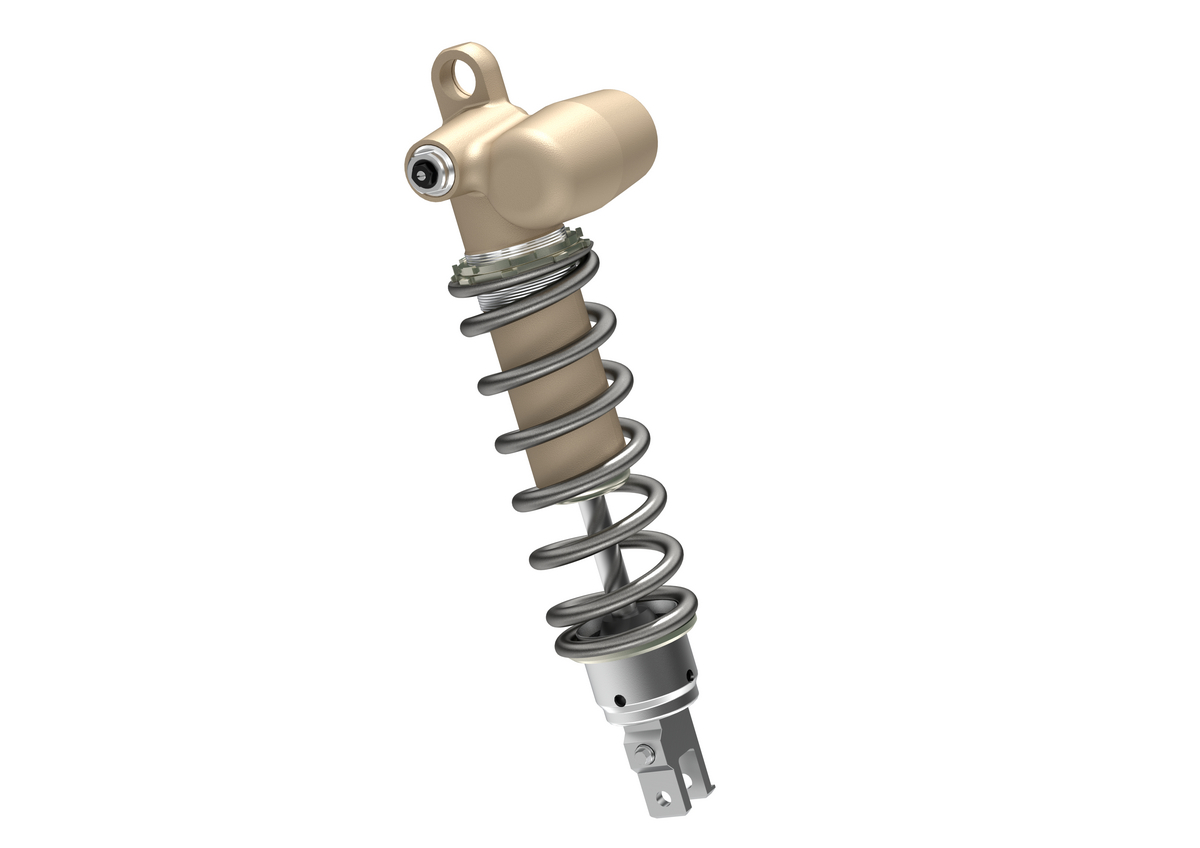

- 2020 Honda CRF450R
-
- 2021 Honda CRF450R with lighter spring

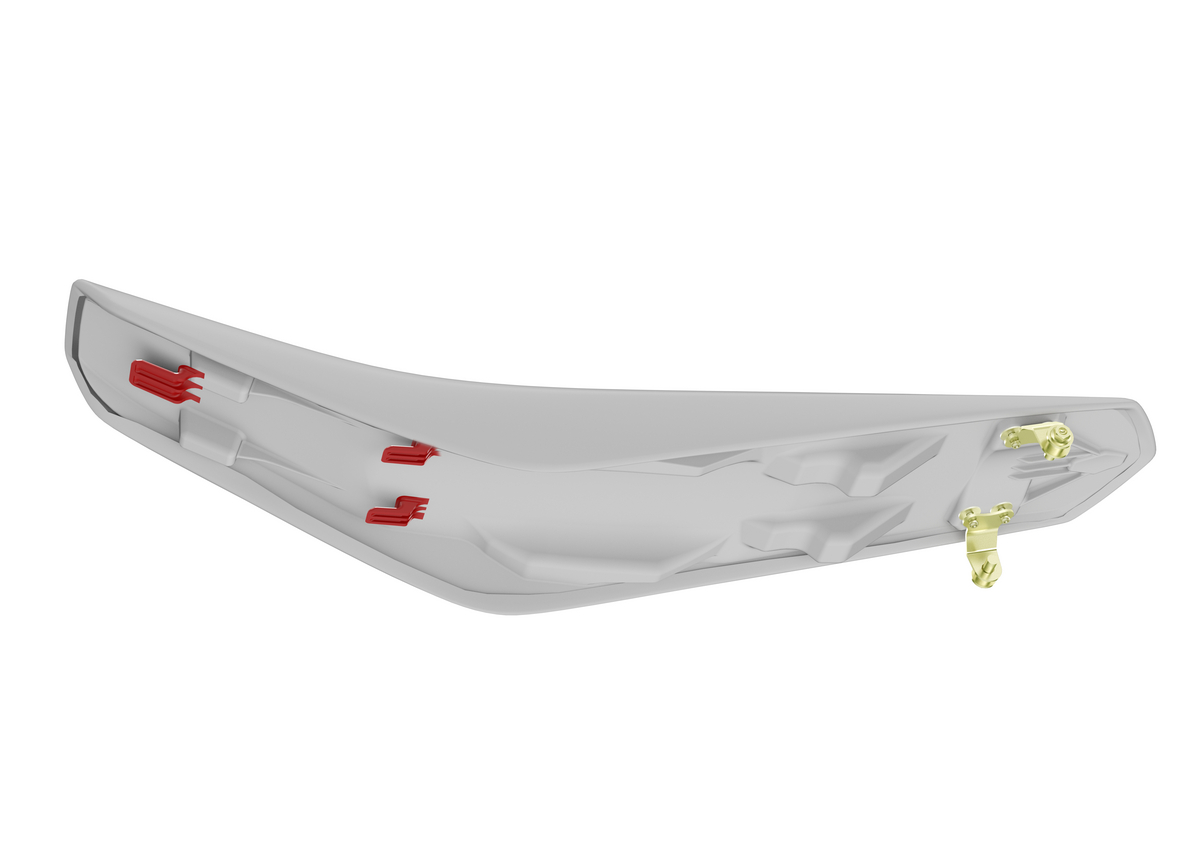

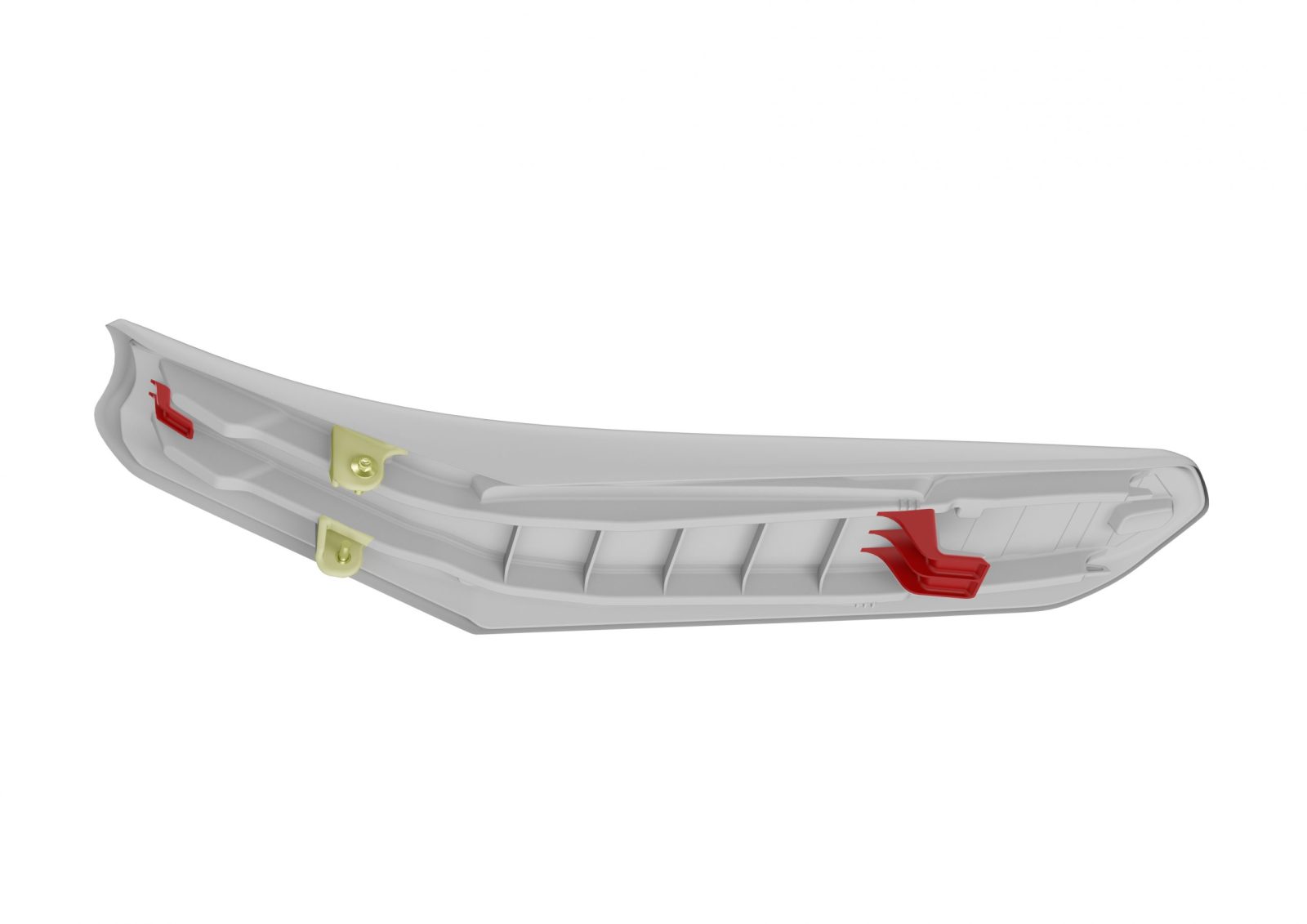

The seat is now shorter, lighter and 10mm lower at the rear, to aid the rider’s freedom of movement. It’s also designed to be much easier to remove and install. Maintenance should also be easier, as the number of 8mm bolts securing the bodywork goes from six to four each side. The new machine is also slimmer by 70mm (50mm on the left, 20mm on the exhaust side), and the plastics thinner, while the tank cover has been removed.
2021 Honda CRF450R
-
- 2020 Honda CRF450R Seat
-
- 2021 Honda CRF450R Seat
Rake and trail are now tighter, 27.1°/114mm (from 27.4°/116mm), and wheelbase marginally shorter 1481mm (1482mm). Ground clearance goes up 8mm to 336mm, and the bottom yoke now sits 6.1mm higher at 928mm. The radius arc from swingarm pivot point to rear wheel spindle increases by 0.9°, to 14.5° while distance between the pivot and front spindle goes up 1.8mm to 914.6mm. Dry weight is 105.8kg, a full 2kg lighter than the previous model.

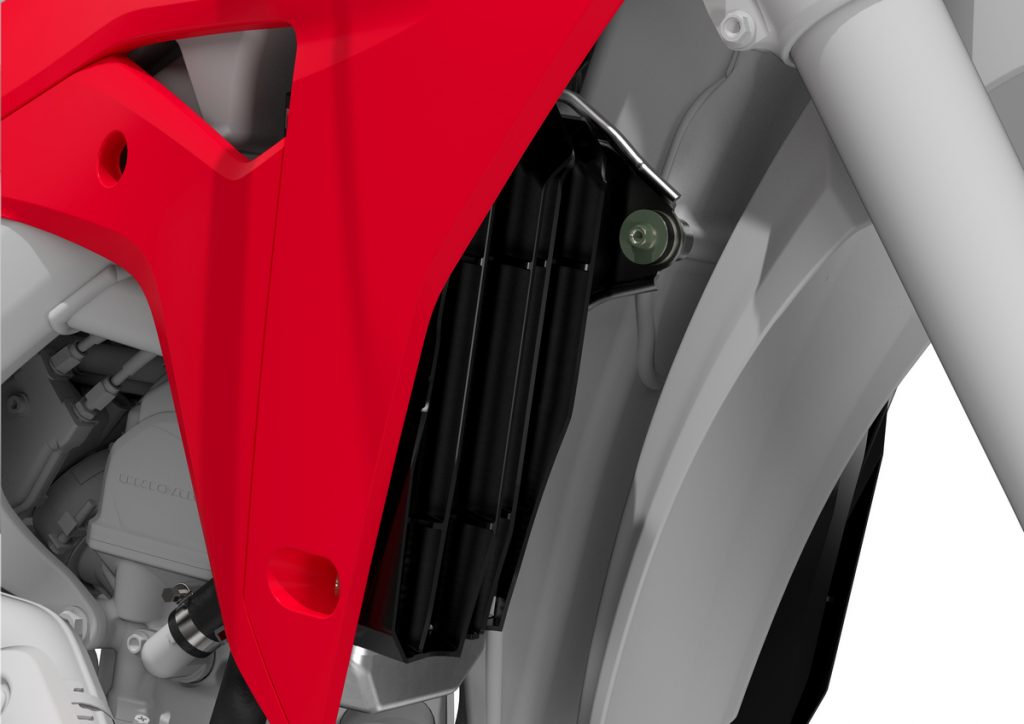

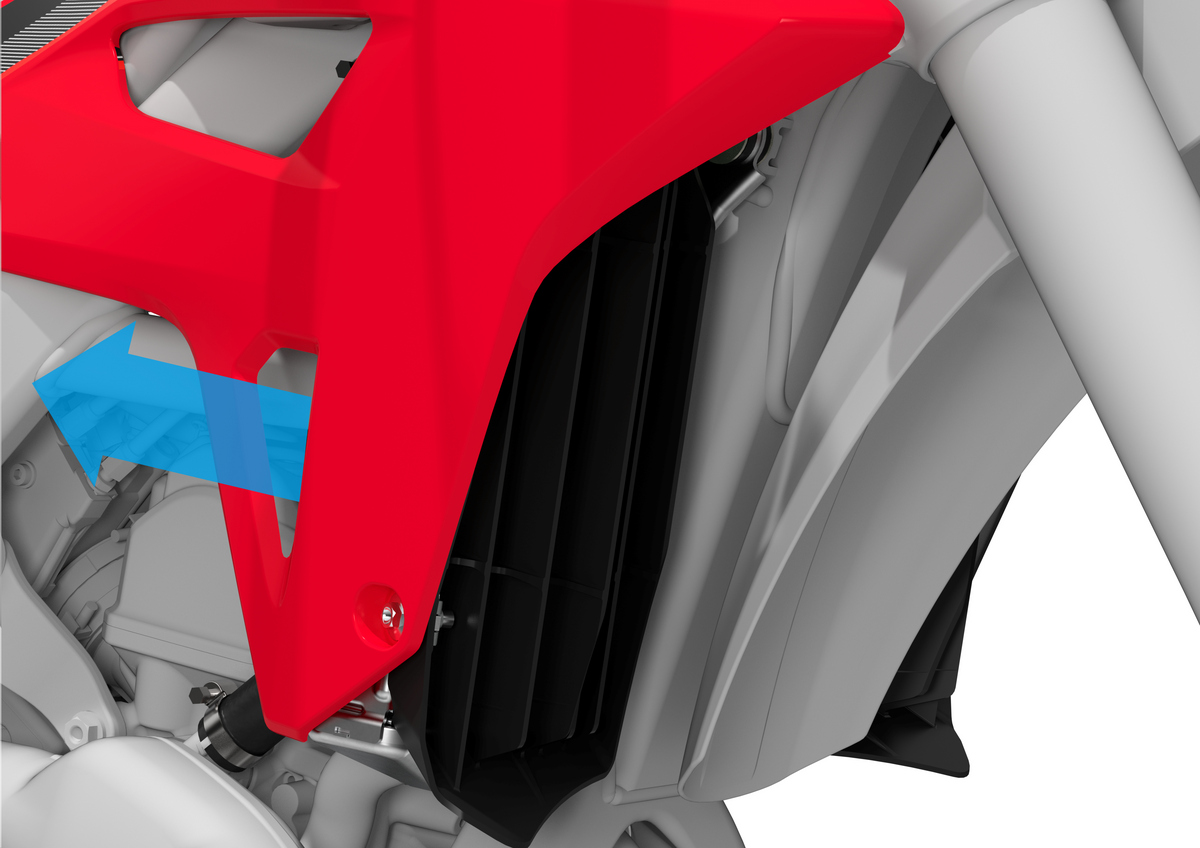

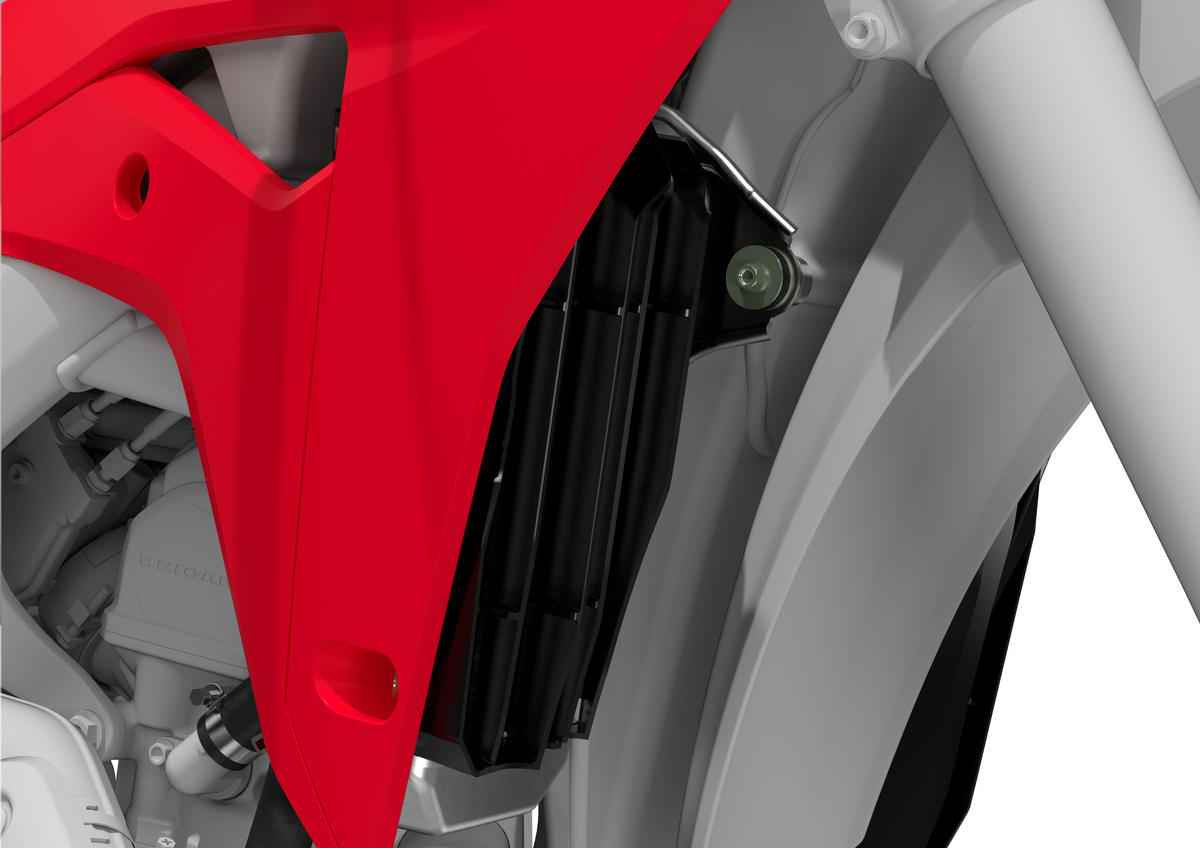

Designed with Computational Flow Dynamics (CFD) for maximum through-flow of air, the radiator shrouds are now constructed from one piece of plastic, rather than two and include a lower vent while the radiator grills are optimised for airflow. Holding 6.3L, the titanium fuel tank has also been redesigned.
-
- 2020 Honda CRF450R
-
- 2021 Honda CRF450R
Standard-fit, lightweight Renthal Fatbar flex for optimal comfort; the top yoke features two handlebar-holder locations for moving the handlebar rearward and forward by 26mm. When the holder is turned 180°, the handlebar can be moved an additional 10mm from the base position, resulting in four unique riding positions. When it comes to weight saving, small contributions accumulate (‘with enough dust, a mountain can form’ as the Japanese saying has it); with that in mind, balanced control cable wiring saves 100g.
Up front, the twin-piston brake caliper employs 30 and 27mm diameter pistons and 260mm wave-pattern disc; along with low-expansion rate brake hose it gives both a strong feel and consistent staying power. The single-piston rear caliper is matched to a 240mm wave-pattern disc.
DID aluminium rims, with directly attached spoke pattern layout are finished in black; the front is a 21 x 1.6in, the rear a 19 x 2.15in. The rear wheel is both stronger and lighter for the 2021 Honda CRF450R and now Dunlop’s MX33F/MX33 soft-terrain tyres are fitted as standard equipment.
2021 CRF450R Engine
– Larger airbox plus revised throttle body and exhaust ports for bottom-end drive
– New exhaust downpipe with single muffler boosts torque and saves weight
– Larger volume hydraulic clutch replaces cable operation for consistent and light lever feel
– Revised decompressor system gives improved stall resistance
Having received a peak power boost of 1.8kW, plus 2Nm more torque and a stronger bottom-end for 19YM, in 20YM development of the 449.7cc four-valve Unicam engine centred around refinements and optimisation of the PGM-FI mapping and HRC Launch Control, plus the addition of Honda Selectable Torque Control. For 21YM the focus – with upgrades derived directly from Tim Gajser’s championship-winning HRC machine – is on drivability in the low to mid-range, and weight saving, further enhancing cornering performance.

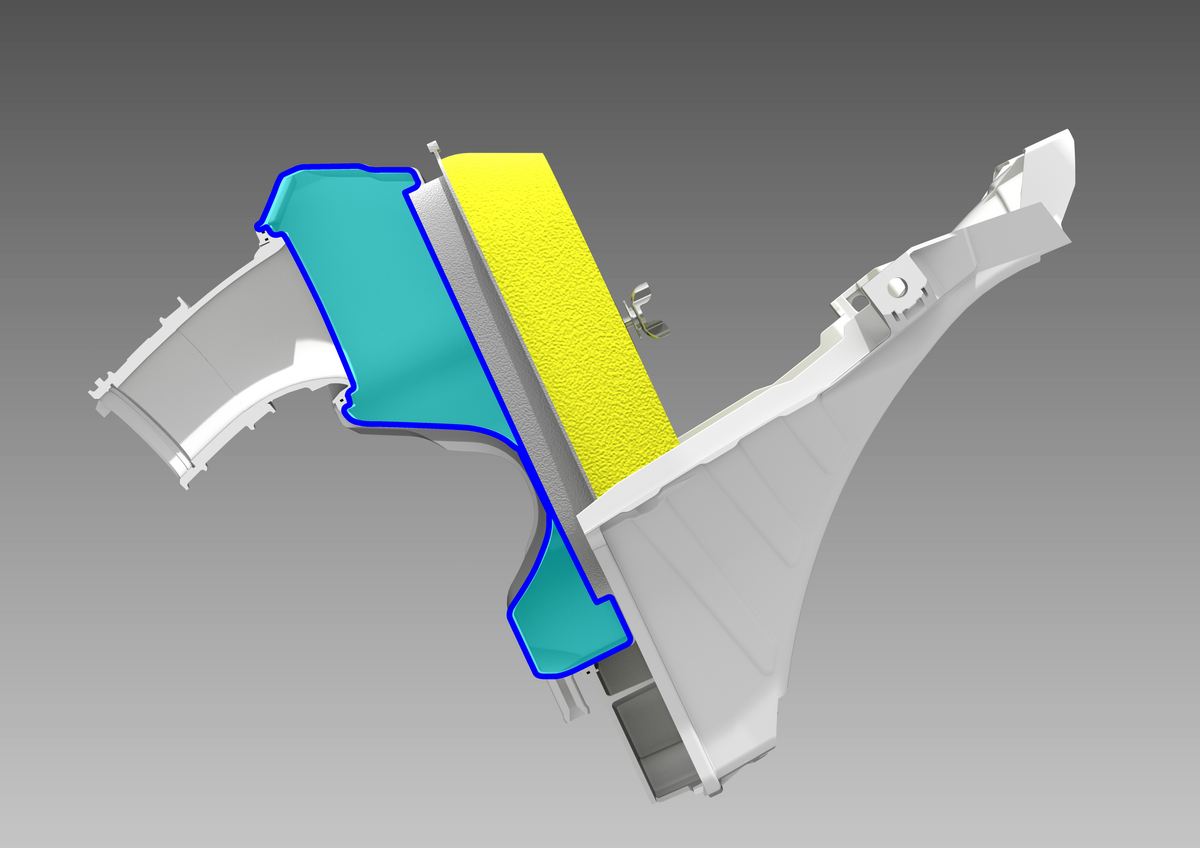

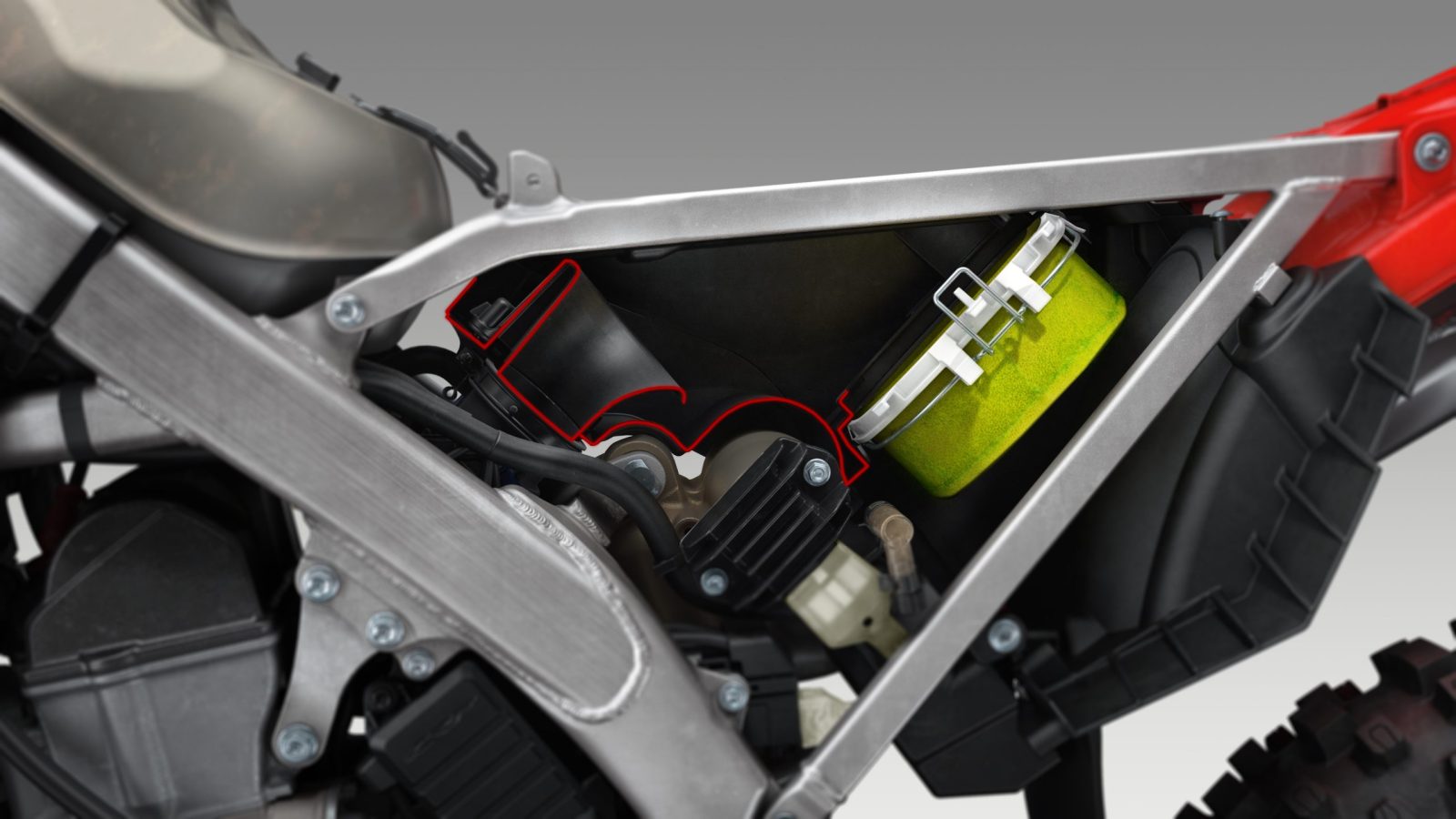

A significant increase (up to 0.6kW) in peak power above 5,000rpm is accompanied by a stronger low-rpm torque feel, the result of an air box increased in size by 1.8L to 4.1L on the ‘clean’ side. The new air box – which can now be accessed simply with the removal of one side shroud bolt – feeds a redesigned, lighter 46mm throttle body, which optimises intake efficiency and makes active use of latent heat vaporisation in the inlet ports.
-
- 2020 Honda CRF450R
-
- 2021 CRF450R Airbox

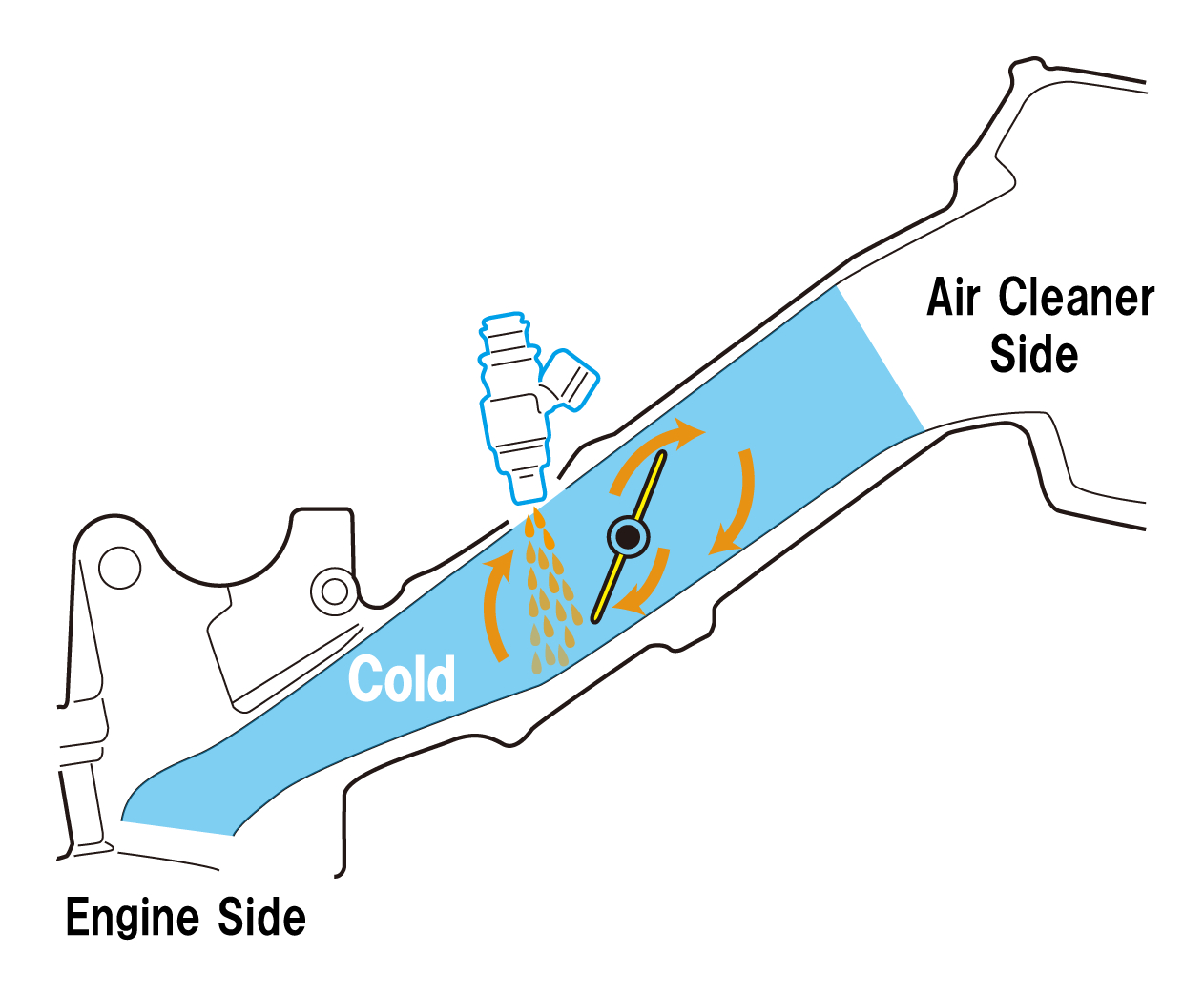

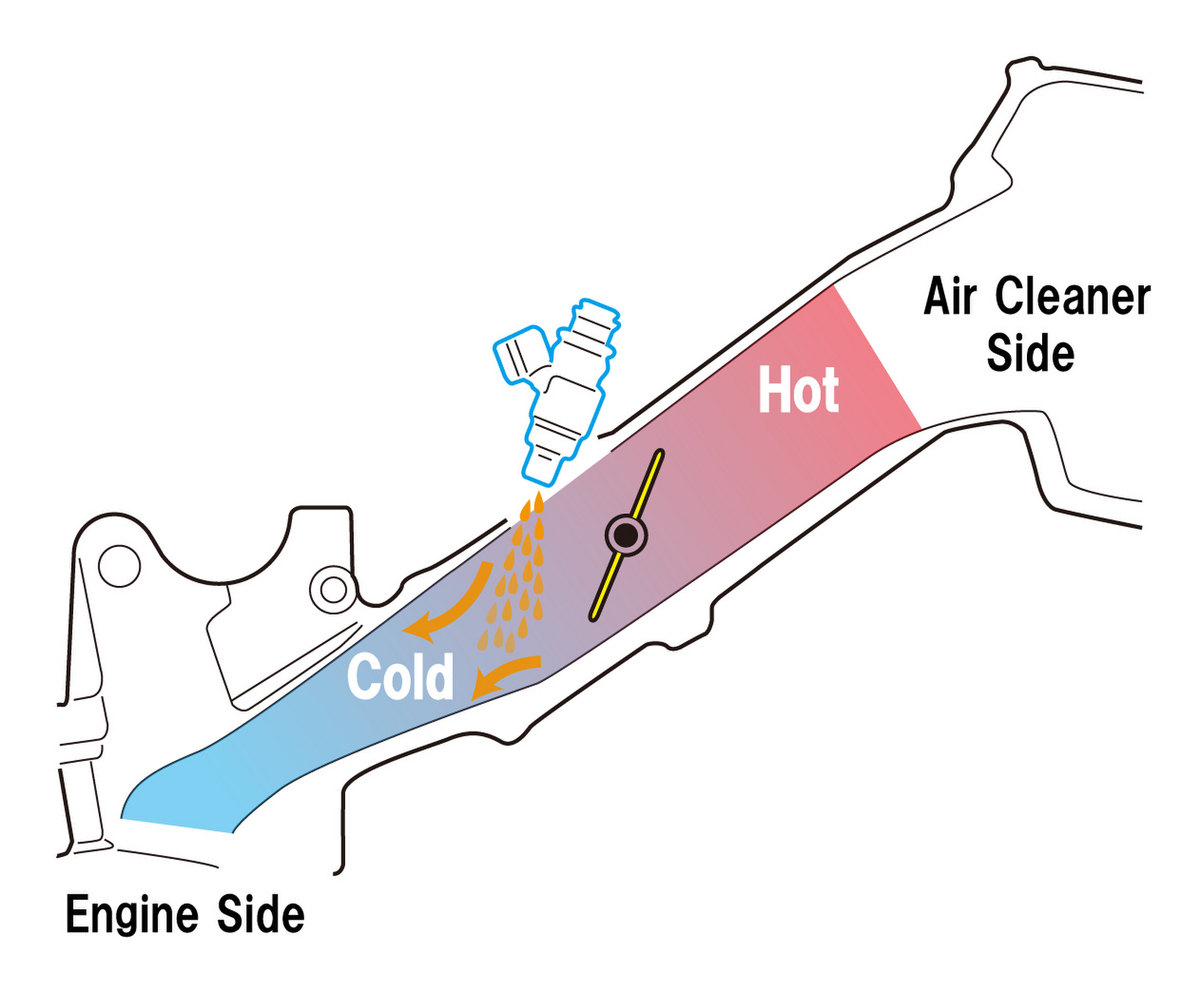

The injector angle has gone from 30° to 60°, spraying fuel all the way back to the butterfly to improve intake efficiency, cooling of the charge and all-important throttle feel. The decompression system is also new: its counterweight is moved from the right of the camshaft to the left, giving more stable operation at low rpm with increased stall-resistance.
-
- 2020 Honda CRF450R
-
- 2021 Honda CRF450R

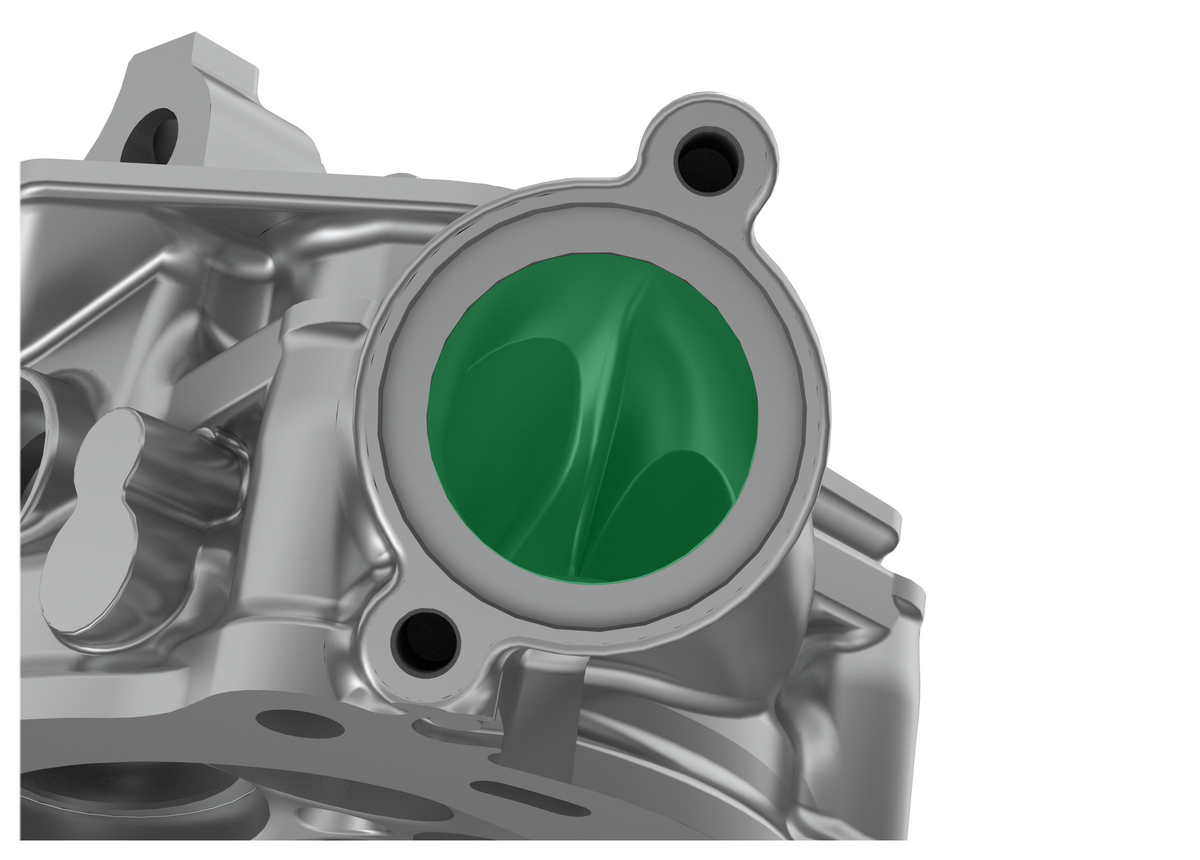

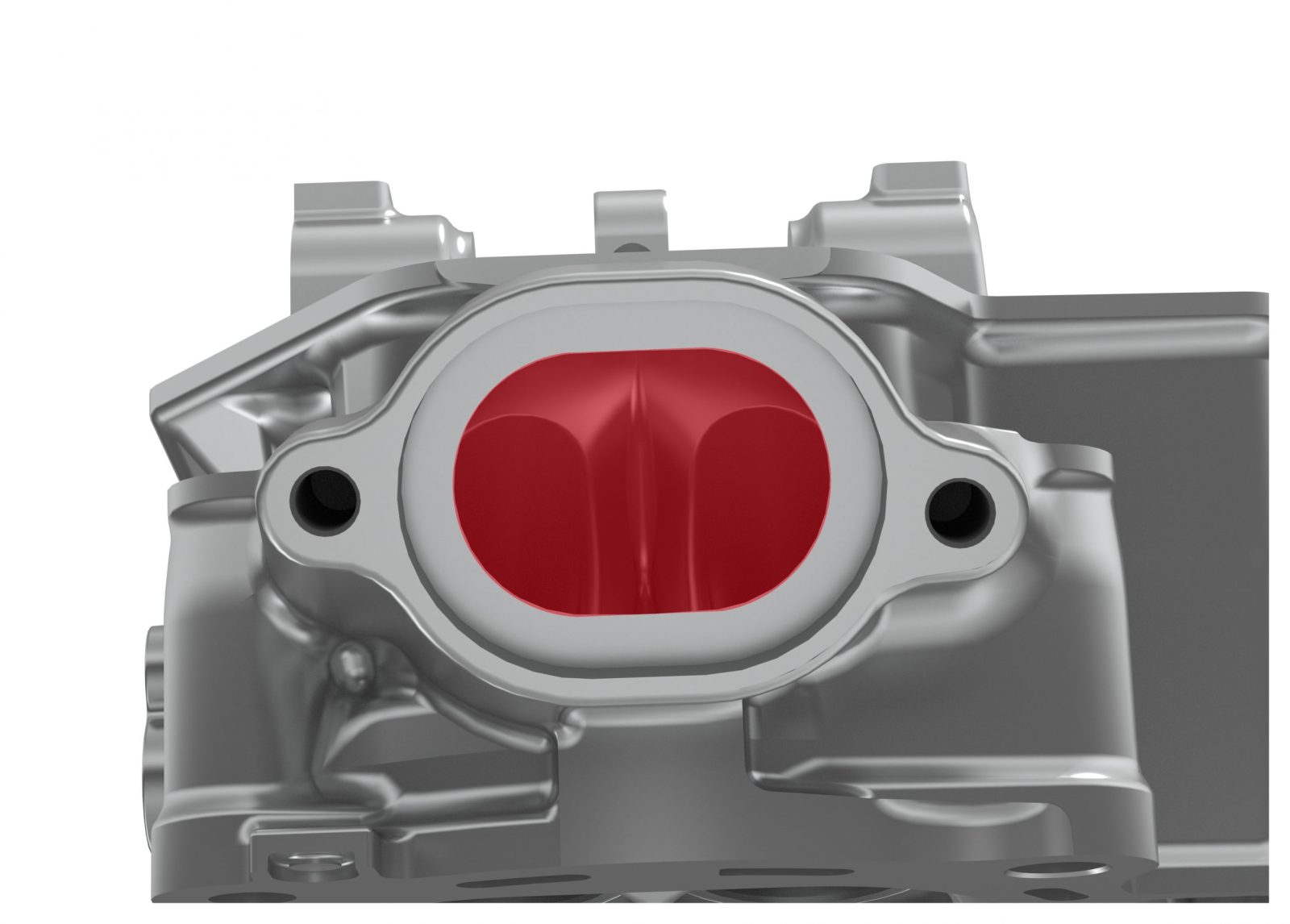

The biggest change is to the twin exhaust ports: like the CBR1000RR-R Fireblade their exit is oval rather than round in shape for improved efficiency, and the 5.08 kg 2-1-2 exhaust design of the previous model has been replaced by a single 3.84kg downpipe and muffler (which also does away with a heat shield) saving a full 1.24kg. The downpipe also tucks in 74mm closer to the centre line (improving rider ergonomics) while the pressed muffler features twin resonators that reduce noise while boosting power.
-
- 2020 Exhaust Port
-
- 2021 Exhaust Port

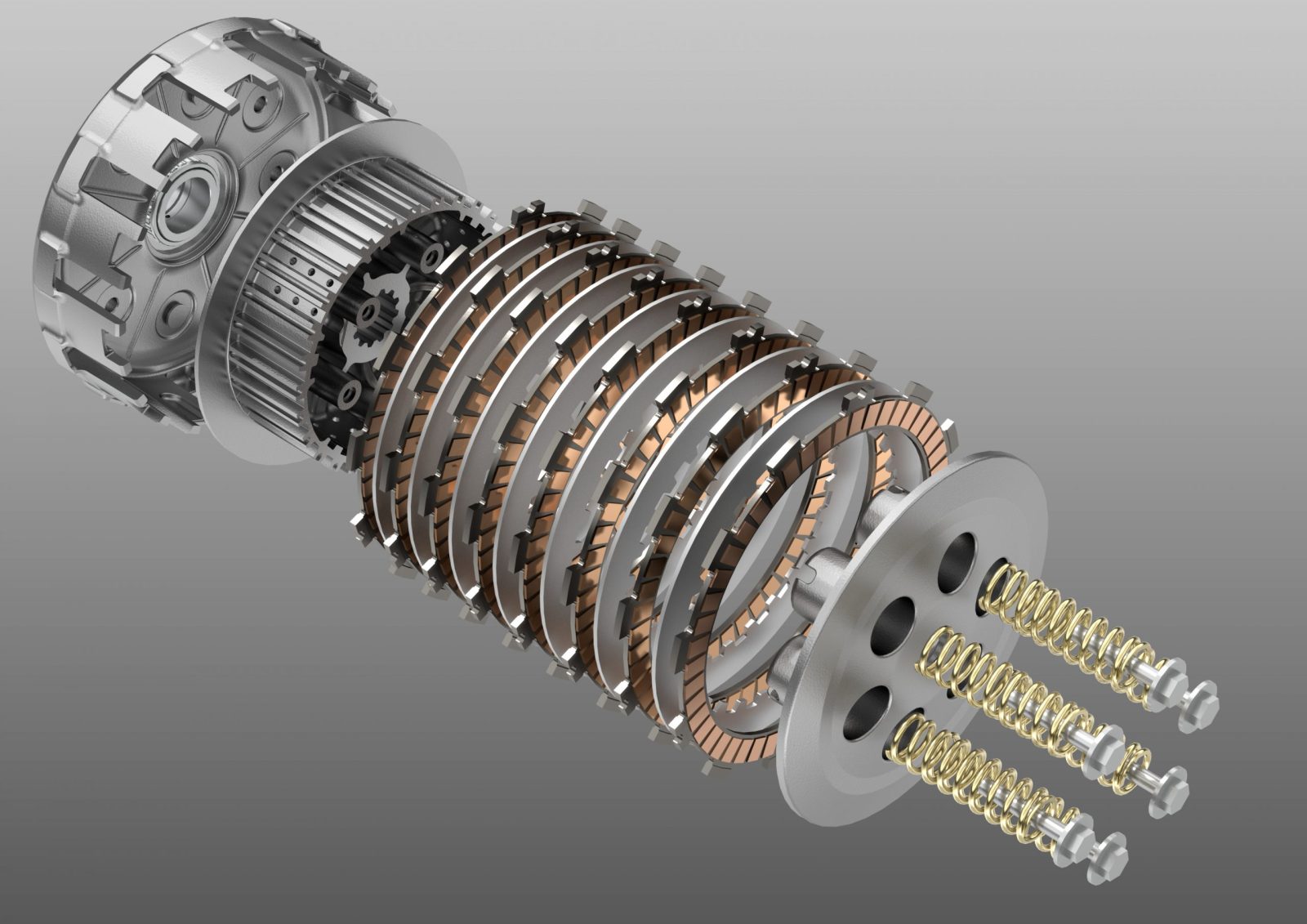

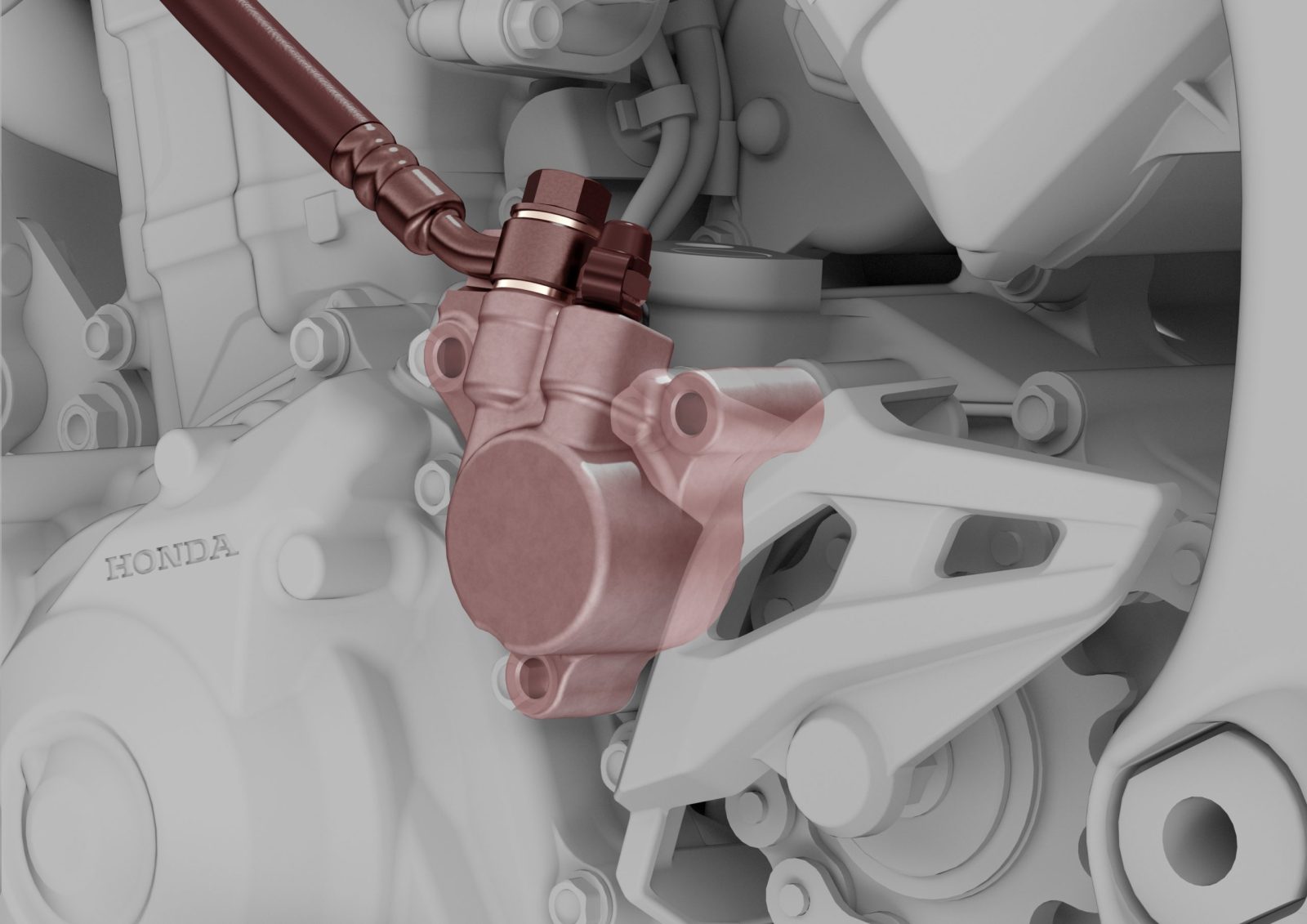

One update drawn directly from Gajser’s bike is the addition of a hydraulic clutch. This improves both control and feel at the lever (it’s claimed 10% lighter) as well as delivering consistent lever clearance under arduous riding conditions. The clutch capacity has been increased by 27% with an extra plate – from 7 to 8 – and works with an extra friction spring to maximise power transmission and durability. Slippage has been reduced by 85% at peak power.
-
- Hydraulic clutch
Bore and stroke remains 96 x 62.1mm with compression ratio of 13.5:1. A gear position sensor allows the use of three specific ignition maps for 1st and 2nd, 3rd and 4th, and 5th.
Rock-solid reliability has always been a big factor in the CRF450R’s success and a 5-hole piston oil jet and dual 12mm drum scavenge pump manage lubrication.

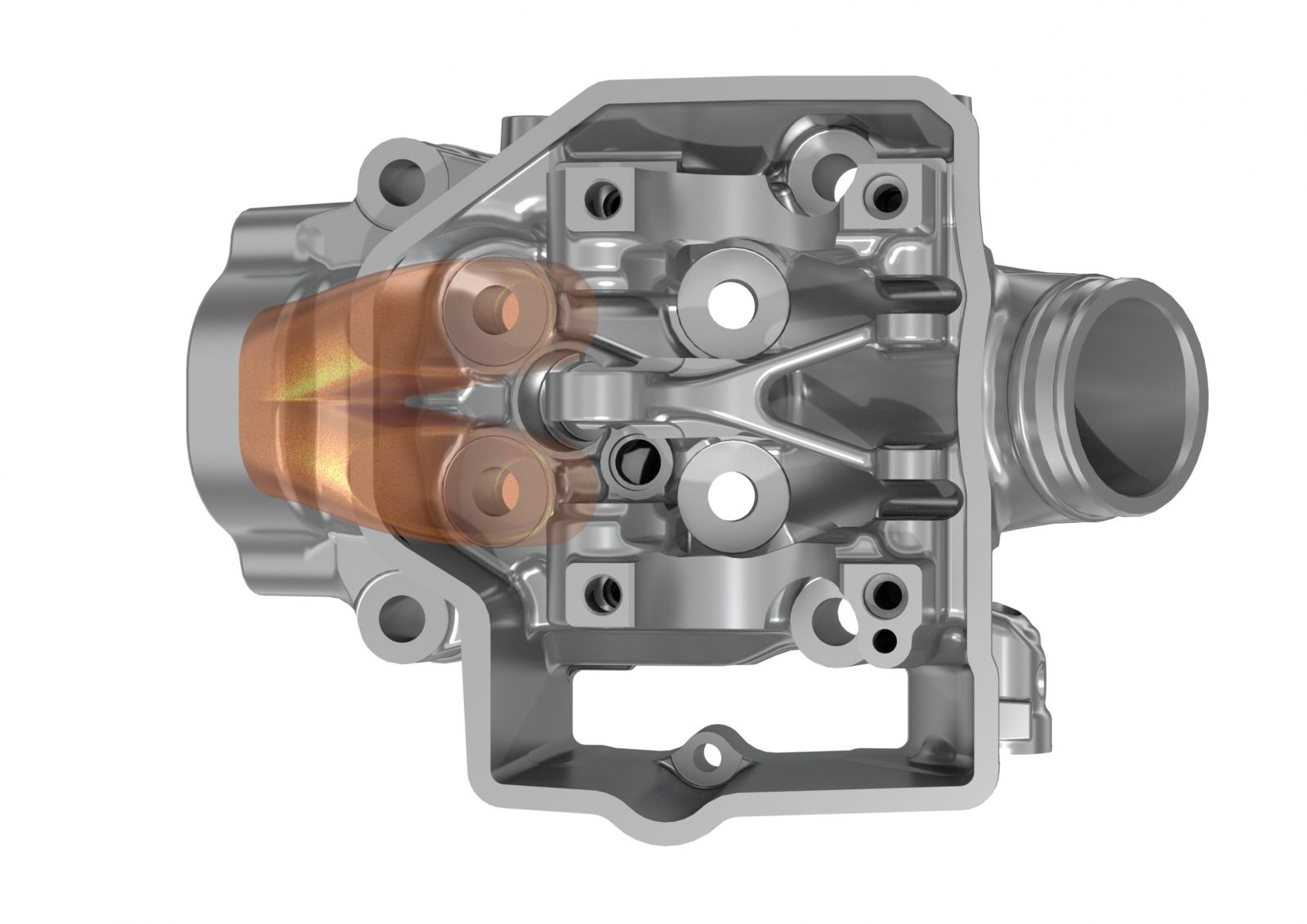

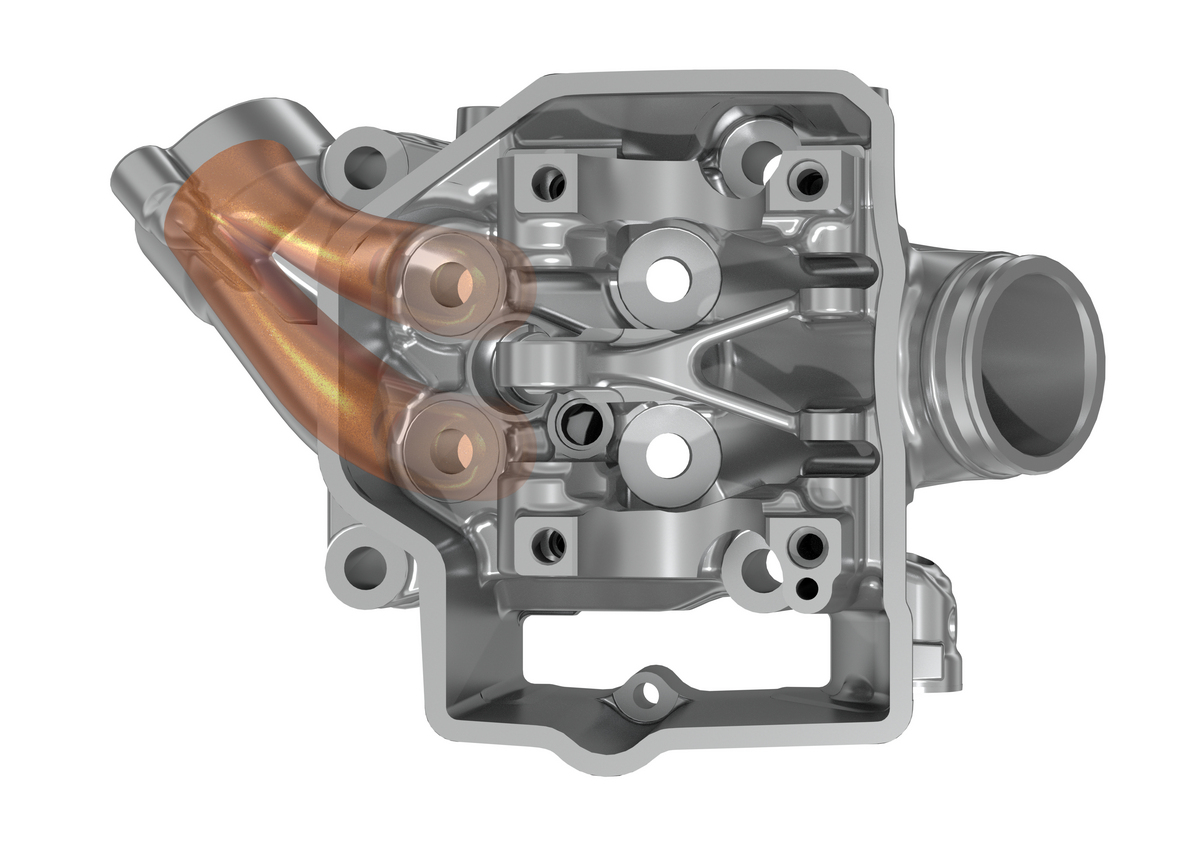

Saving more precious grams, the magnesium cylinder head cover has been redesigned with thinner material and the fuel pump made smaller – it secures with 4 bolts instead of 6, saves 120g and offers the same pressure and filter life as the previous design.
-
- 2020 Head
-
- 2021 Head
2021 CRF450R Electronics
– Honda Selectable Torque Control (HSTC) with 3 riding modes, plus OFF
– HRC Launch Control offers 3 start options
– Engine Mode Select Button (EMSB) features 3 maps to adjust output character
– HSTC button now rationalised into the left-hand switchgear
– HRC setting tool updated for changes to Aggressive and Smooth modes
The CRF450R gained HSTC in 20YM and the system is unchanged for 21YM. It works to minimise rear wheel spin (thus wasted forward drive) and maximise traction. It doesn’t use a wheel speed sensor, and critically maintains feel at the throttle while managing power; ignition timing is retarded and the PGM-FI controlled when the rate of change of rpm is detected to have gone over a set amount.
The three Modes differ in drive management level for different riding conditions:
In Mode 1 the system intervenes most lightly, and after the longest time – useful for reducing wheelspin and maintaining control in tight corners.
Mode 3 has the system intervene more quickly and strongly, and is therefore useful in more slippery, muddy conditions.
Mode 2 naturally offers a mid-point between 1 and 3 in terms of speed and strength of intervention.
An obvious update for the 2021 Honda CRF450R is the rider controls and display switchgear. The Launch Control indicator, EFI warning, EMSB mode button and LED indicator – are sited on the left handlebar, with HSTC button now incorporated.
New cable routing
Pressing and holding the HSTC button for 0.5s will cycle the system to the next mode, with a green LED indication – 1 blink for mode 1, 2 for mode 2 and 3 for mode 3 – to confirm selection.
The HSTC system can also be switched off completely. When the engine is turned on, the system uses the last-selected setting.
HRC Launch Control gives any rider the best option for a strong start and also has 3 modes to choose from:
– Level 3 – 8,250rpm, muddy conditions/novice.
– Level 2 – 8,500rpm, dry conditions/standard.
– Level 1 – 9,500rpm, dry conditions/expert.
Activating HRC Launch Control is easy: to turn on, pull in the clutch and push the Start button on the right. The purple LED will blink once for Level 1 selection. Push the Start button again, for 0.5s or longer, and the LED will blink twice for Level 2. Repeat the process and the LED will blink 3 times, indicating that Level 3 has been chosen.
The Engine Mode Select Button (EMSB) alters the engine’s characteristics and three maps are available to suit riding conditions or rider preference:
– Mode 1 – Standard.
– Mode 2 – Smooth.
– Mode 3 – Aggressive.
The LED also displays mode selected, but with a blue light.
Gaining a 21YM mapping update the HRC Setting Tool can deliver a much more easy-going Smooth mode, with gentler throttle response for novice riders. It can also inject Aggressive mode with a hyper-sensitive throttle reaction and engine response for race conditions.
2021 Honda CRF450R Specs
ENGINE
Type: Liquid-cooled 4-stroke single cylinder uni-cam
Displacement: 449.7cc
Bore/Stroke: 96.0mm x 62.1mm
Compression Ratio: 13.5 : 1
FUEL SYSTEM
Carburation: Fuel injection
Fuel Tank Capacity: 6.3 litres
ELECTRICAL SYSTEM
Ignition: Digital CDI
Starter: Self-Starter
DRIVETRAIN
Clutch Type: Wet type multi-plate
Transmission Type: Constant mesh
Final Drive: Chain
FRAME
Type: Aluminium twin tube
CHASSIS
Dimensions (L´W´H): 2,182 x 827 x 1,267mm
Wheelbase: 1,481mm
Caster Angle: 27.1°
Trail: 114mm
Seat Height: 965mm
Ground Clearance: 336mm
Dry Weight: 105.8kg
SUSPENSION
Type Front: Showa 49mm USD fork
Type Rear: Showa monoshock using Honda Pro-Link
WHEELS
Tyres Front: 80/100-21-51M Dunlop MX33F
Tyres Rear: 120/80-19-63M Dunlop MX33
BRAKES
Front: Single 260mm disk
Rear: Single 240mm disk
2021 Honda CRF450RX
The 2021 CRF450RX cross-country model received all the same upgrades but it’s not confirmed whether it will come to Australia. The CRF450RL, formally the CRF450L has been dropped from the Australian market.
Interestingly, Honda USA has announced Honda will continue to offer the 2020 CRF450R alongside the 2021 Honda CRF450R. It will be available at a permanent price reduction and made possible through an additional production run. This is exclusive to the States and does not apply to Australia.
There are no changes to the CRF150R and CRF250R.
2021 Honda CRF models will be available in Australia from October. The CRF450R will retail for $12,899, up from $12,299. The CRF250R $11,699, up from $11,299 and the CRF150RB $7899, up from $7599.
